Top Vacuum cooling Machine with Worldwide Accessories Brand Top Vacuum cooling Machine with Worldwide Accessories Brand Top Vacuum cooling Machine with Worldwide Accessories Brand

Top Vacuum cooling Machine with Worldwide Accessories Brand

Price:
US 70000-90000 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
100 Unit/Units per Month
Port:
Shenzhen port
Place of Origin:
Guangdong, China (Mainland)
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Brand:
ICEUPS
Products Model:
KMS-08P
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: ICEUPS

    Model Number: KMS-08P

    Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

  • Packaging Details: vegetable vacuum cooling machine packing: It is massive equipment, we deliver machines by nake but with protection in container including fixing and buffering, also holding and drawing point will be made for convenient unloading at site. On shipping, we use 40HQ/40T/40FT container according to actual
  • Delivery Detail: 20~30days

Specifications

Product Description

 Top Vacuum cooling Machine with Worldwide Accessories Brand

1.Vacuum Cooler is the quickest and most cost-effective cooling system for vegetable, fruits, flowers & more.


2.Vacuum cooler, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers!


3.Vacuum Cooler cools fresh product quickly and uniformly in large loads within 15-30mins/cycle, also suitable for packed produces.

ICEUPS will design and offer the most suitable machine according to clients'requirements.
* Vacuum Cooler Machine Condenser System Type:
1) Air condenser:The simplest construction, suitable for small system.Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install. Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.

*Door type of Vacuum Cooler Machine

1) Standard swing door: The simplest construction, manual operation. The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed ,besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door:Suggested solution for all systems from 2-6 pallets. Easy installation , easy ramp construction.

Please contact ME to get more technical information & quotations.

SPECIFICATIONS FOR 5000KG VACUUM COOLER

Vacuum cooler
Model
KMS-08P
4000kg/ 8 pallets
processing temperature
From 30°C to 2°C
20-30 Minutes
Vacuum chamer Dimensions
11000X2609X2200
mm

Main performance parameters
Refrigeration capacity
272
kw
Compressor power
116.5
kw
Evaporating temperature
-15

Operation system
power supply
380v/50hz/3p
or 220v,415v,480v
Refrigerant
R404a
or R22
Automatic control system
PLC
schneider/LS

Main Features of 8 pallets Vacuum cooler

1)Green Cooling: Energy saving &Optimal cooling efficiency
2)Radily Cooling: From 30°C to 2°C in 20-30 Minutes
3)Extend Shelf Life: Stay freshness and Nutrition Longer
4)Accurated Control: PLC combine with sensitive sensors&valves
5)Easy Operation Design: Automatic Control work with touch screen
6)Reliable Parts: Busch/Leybold/Elmo Rietschle/Bitzer/Danfoss/Johnson/Schneider/LS

Certifications
Detailed Images

Machine Parts

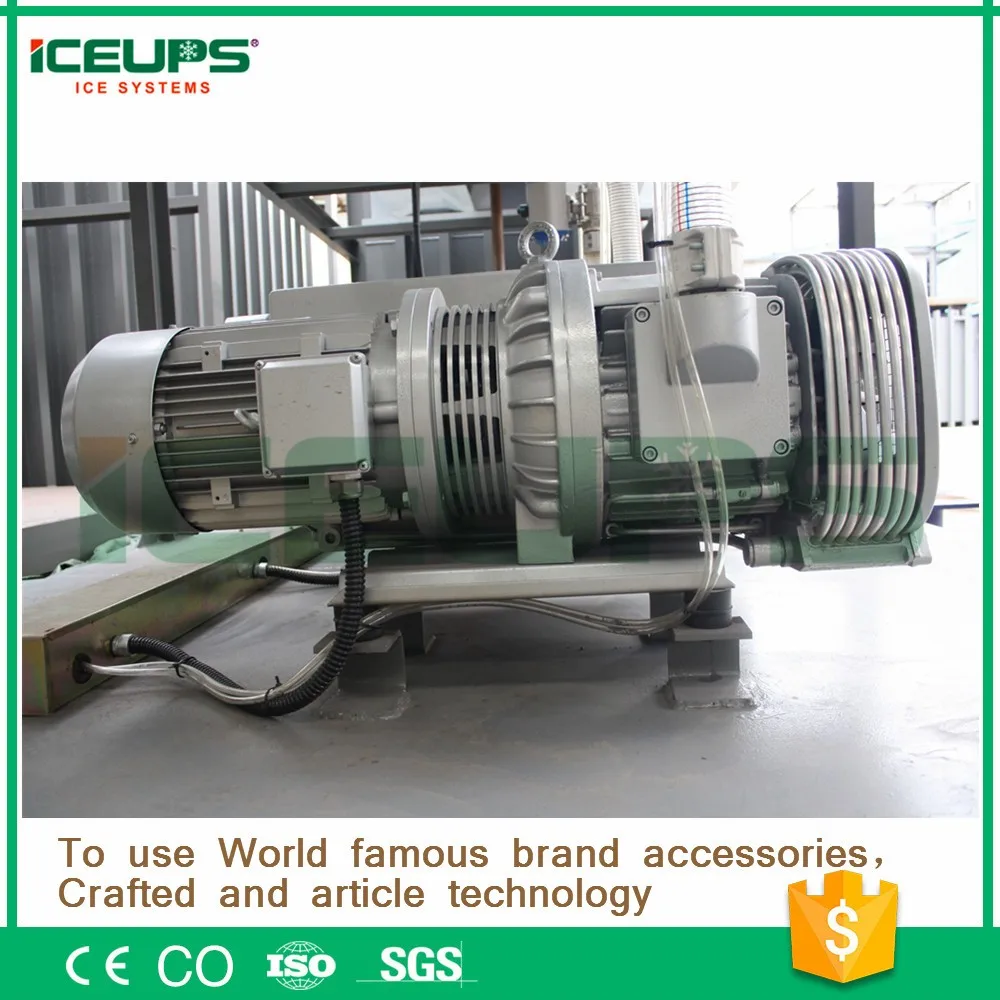

Name: Vacuum Pump

Brand: Leybold

Original: Germany

 Global famous vacuum pump with good quality

other brand : TongXin, Rietschle ,Busch

Main Features

Name: Vacuum Chamber
Brand: ICEUPS(Kemeisi)
Original: China

1) the size of the chamber is defined by the amount of pallets(1~12pallets,weight ranging from 250 to 4,000kg)

2)Crops are to cool within 20~30minutes per time, and their individual

3)Chamber Material:Painted mild steel and Stainless steel

Machine Parts

Name: Compressor
Brand: Bitzer
Original: Germany
Global famous compressor
You can choose HANBELL,GEA BOCK

Main Features

Name: Intelligent control system
Brand: LS
Original: Korea
Automatic and good quality, strong driving force, low fuel consumption, high economic benefits.

Automatical PLC programmable control system

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
